Product Name

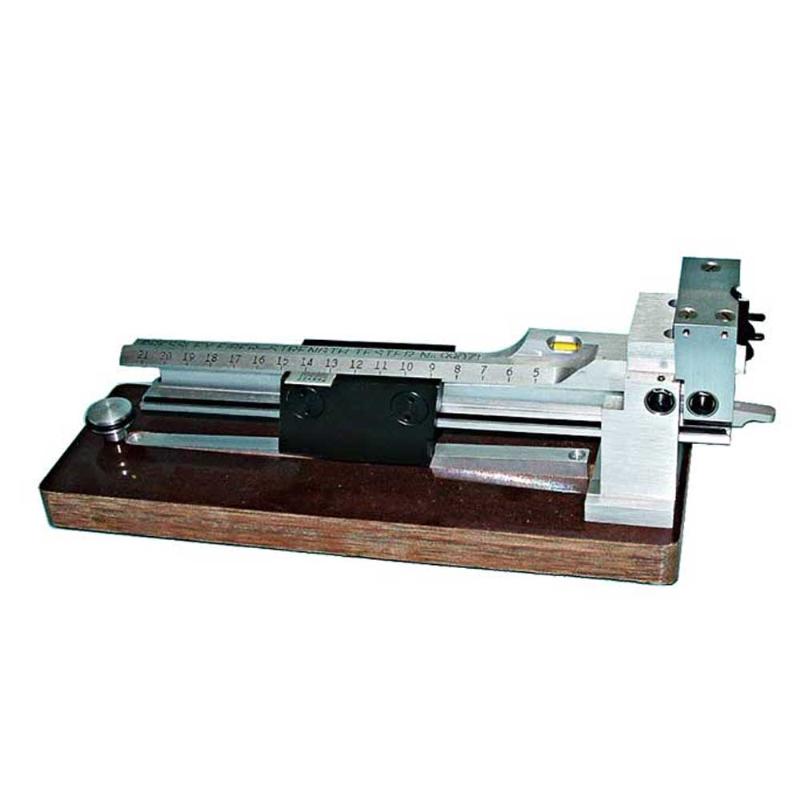

Pressley Fiber Bundle Strength Tester
Model No.
KX101
KX101 Pressley Fiber Bundle Strength Tester is an equipment based on the principle of moment balance measuring force, and use a ramp-type device where a hammer slides freely to measure bundle cotton breaking strength by the distance that the hammer slides.
KX101 Pressley Fiber Bundle Strength Tester is an equipment based on the principle of moment balance measuring force, and use a ramp-type device where a hammer slides freely to measure bundle cotton breaking strength by the distance that the hammer slides.
STANDARDS | GB/T 13783 | ISO 3060 |
Note: this fiber bundle strength tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Gauge length
| 0 or 3.2 mm
|
Range of breaking strength
| 5~20lbf (25N~90N)
|
Coefficient of strength ratio
| 0.9~1.1
|
Package dimension
| 870x630x710mm
|
Weight
| 37kg
|
Gauge length
| 0 or 3.2 mm
|
Range of breaking strength
| 5~20lbf (25N~90N)
|
Coefficient of strength ratio
| 0.9~1.1
|
Package dimension
| 870x630x710mm
|
Weight
| 37kg
|
