Product Name

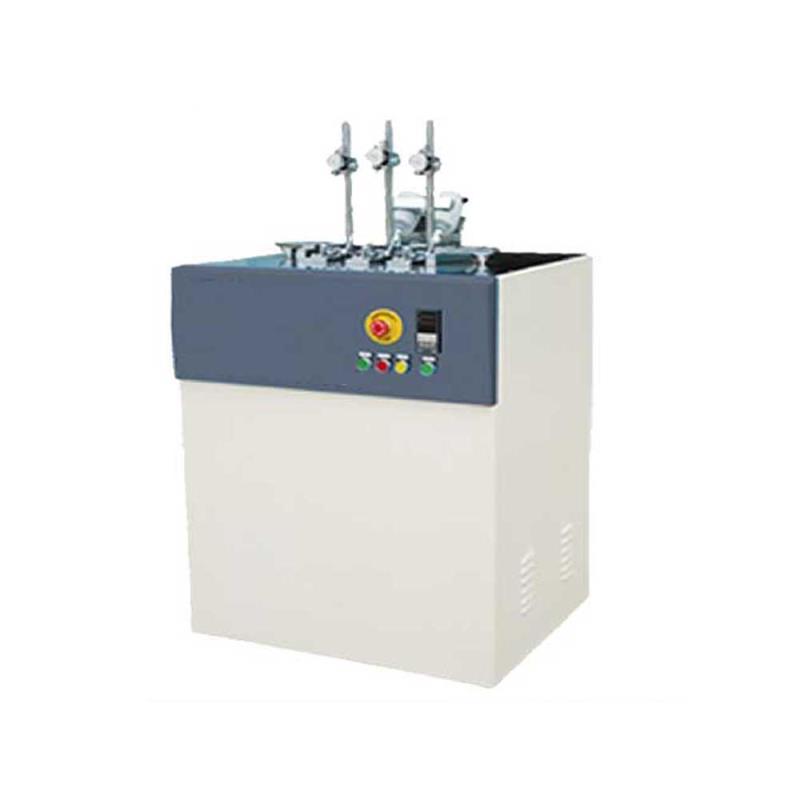

HDT/ Vicat Softening Temperature Tester
Model No.
DW5340
DW5340 HDT/ Vicat Softening Temperature Tester, It is used to determine heat distortion temperature and Vicat softening temperature of high polymer materials, as an index of controlling quality and identifying thermal property of new products.
Sample is immerged in liquid and fixed by a pressure needle. Heat liquid with specified heating rate, sample becomes soft and will distort under the pressure. The liquid temperature is Vicat softening temperature when distortion reaches 1mm.
DW5340 HDT/ Vicat Softening Temperature Tester, It is used to determine heat distortion temperature and Vicat softening temperature of high polymer materials, as an index of controlling quality and identifying thermal property of new products.
Sample is immerged in liquid and fixed by a pressure needle. Heat liquid with specified heating rate, sample becomes soft and will distort under the pressure. The liquid temperature is Vicat softening temperature when distortion reaches 1mm.
STANDARDS | GB/T 1633,GB/T 1634,GB/T 8802 | ISO75 ,ISO306, ISO2507 |
Note:this tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
| Temperature range | room temperature~300℃ |
| Heating speed | (12±1)℃/6min (120±10℃/h) (5±0.5)℃/6min (50±5℃/h) |
| Max. temperature error | ±0.1℃ |
| Measuring range of deformation | 0~3mm |
| Measuring error of deformation | 0.01mm |
| Temperature range | room temperature~300℃ |
| Heating speed | (12±1)℃/6min (120±10℃/h) (5±0.5)℃/6min (50±5℃/h) |
| Max. temperature error | ±0.1℃ |
| Measuring range of deformation | 0~3mm |
| Measuring error of deformation | 0.01mm
|
