Product Name
Dynamic & Fatigue Testing System
Model No.
DW1280D

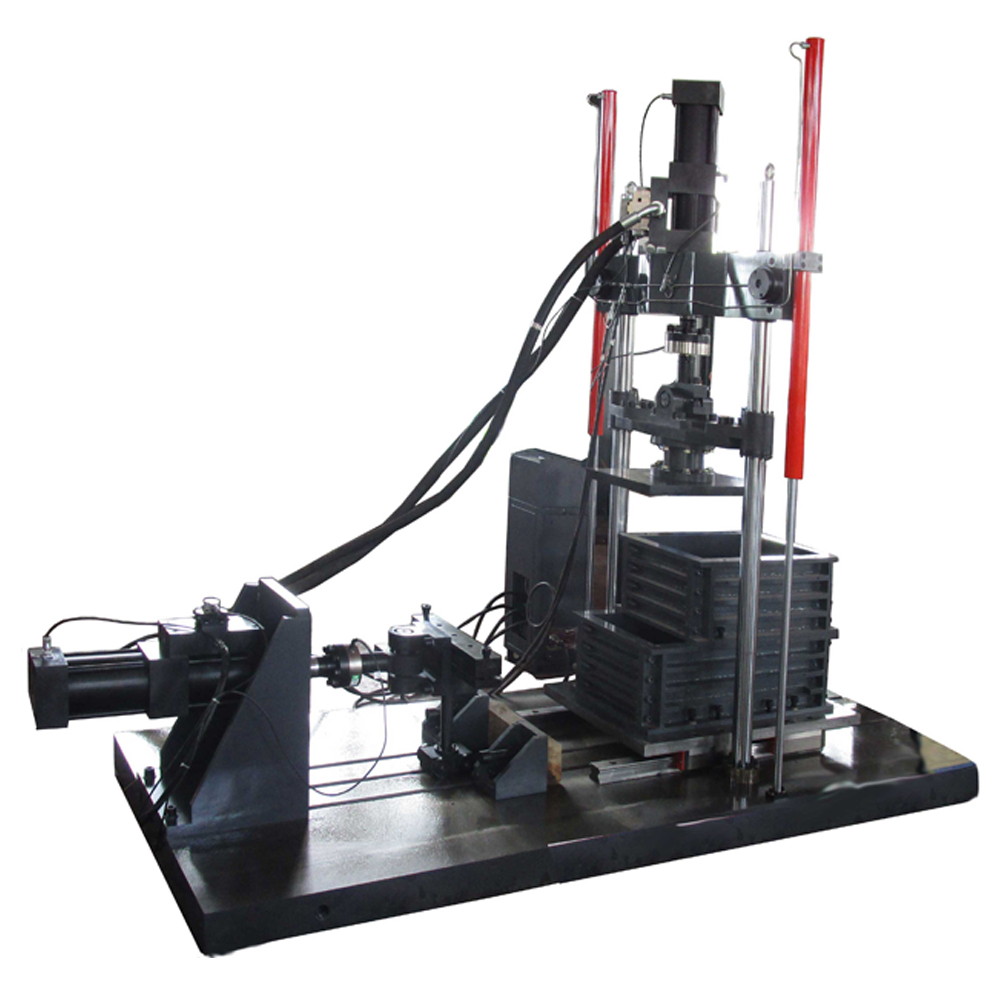

DW1280D Direct Shear / Pullout Tester is used to determine the shear resistance and the pullout resistance of a geosynthetic against soil, a geosynthetic against another geosynthetic, or a Geosynthetic clay liner against an adjacent material, by the directly shear test and by the pullout test separately. The test results obtained are used in the design of structures that employ geosynthetics,also used for quality control during construction of these structures. It is suitable for geotextiles, geomembranes, geonets and geogrids, etc.
DW1280D Direct Shear / Pullout Tester is used to determine the shear resistance and the pullout resistance of a geosynthetic against soil, a geosynthetic against another geosynthetic, or a Geosynthetic clay liner against an adjacent material, by the directly shear test and by the pullout test separately. The test results obtained are used in the design of structures that employ geosynthetics,also used for quality control during construction of these structures. It is suitable for geotextiles, geomembranes, geonets and geogrids, etc.
Direct sheartest:
STANDARDS | ISO12957.1 | ASTMD5321 | GB/T17635.1 |
SL/T 235 | JTG E50T1129 |
|
Pullout test:
STANDARDS | ASTM D6706 | SL/T 235 | JTG E50T1130 |
Note: this Dynamic and fatigue testing system canconform to but not limit to the standards above, for more standardsconformance, please contact us.
| Normal pressure | Static load: 50-400kPa Dynamic load: 50-300kPa |
| Max. horizontal load | 100KN |
| Shear / pullout rage | 0.3~10mm/min |
| Direct shear displacement | 0~100mm |
| Pullout displacement | 0~150mm |
| Normal pressure | Static load: 50-400kPa Dynamic load: 50-300kPa |
| Max. horizontal load | 100KN |
| Shear / pullout rage | 0.3~10mm/min |
| Direct shear displacement | 0~100mm |
| Pullout displacement | 0~150mm
|
