Product Name
Direct Shear/Pullout Test Apparatus
Model No.
DW1280L

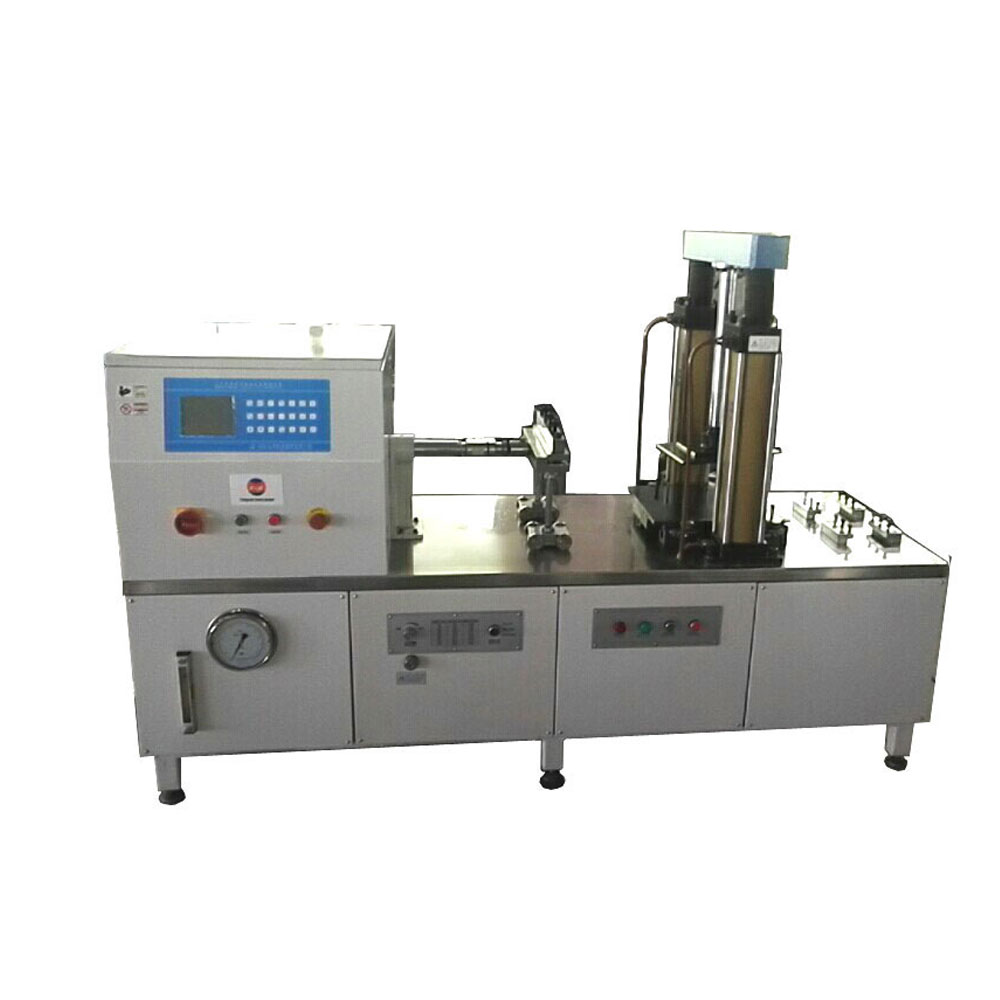

DW1280L Direct Shear / Pullout Tester is used to determine the shear resistance and the pullout resistance of a geosynthetic against soil, a geosynthetic against another geosynthetic, or a Geosynthetic clay liner against an adjacent material, by the directly shear test and by the pullout test separately. The test results obtained are used in the design of structures that employ geosynthetics,also used for quality control during construction of these structures. It is suitable for geotextiles, geomembranes, geonets and geogrids, etc.
DW1280L Direct Shear / Pullout Tester is used to determine the shear resistance and the pullout resistance of a geosynthetic against soil, a geosynthetic against another geosynthetic, or a Geosynthetic clay liner against an adjacent material, by the directly shear test and by the pullout test separately. The test results obtained are used in the design of structures that employ geosynthetics,also used for quality control during construction of these structures. It is suitable for geotextiles, geomembranes, geonets and geogrids, etc.
Direct sheartest:
STANDARDS | ISO12957.1 | ASTMD5321 | GB/T17635.1 |
SL/T 235 | JTG E50T1129 |
|
Pullout test:
STANDARDS | ASTM D6706 | SL/T 235 | JTG E50T1130 |
Note: this direct shear/pullout tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
| Normal pressure | 50~400kPa, can be customized |
| Max. horizontal load | 50KN |
| Shear / pullout rage | 0.1~10mm/min |
| Direct shear displacement | 0~100mm |
| Pullout displacement | 0~150mm |
| Normal pressure | 50~400kPa, can be customized |
| Max. horizontal load | 50KN |
| Shear / pullout rage | 0.1~10mm/min |
| Direct shear displacement | 0~100mm |
| Pullout displacement | 0~150mm
|
