Product Name
Geosynthetics Strength Tester
Model No.
DW1210

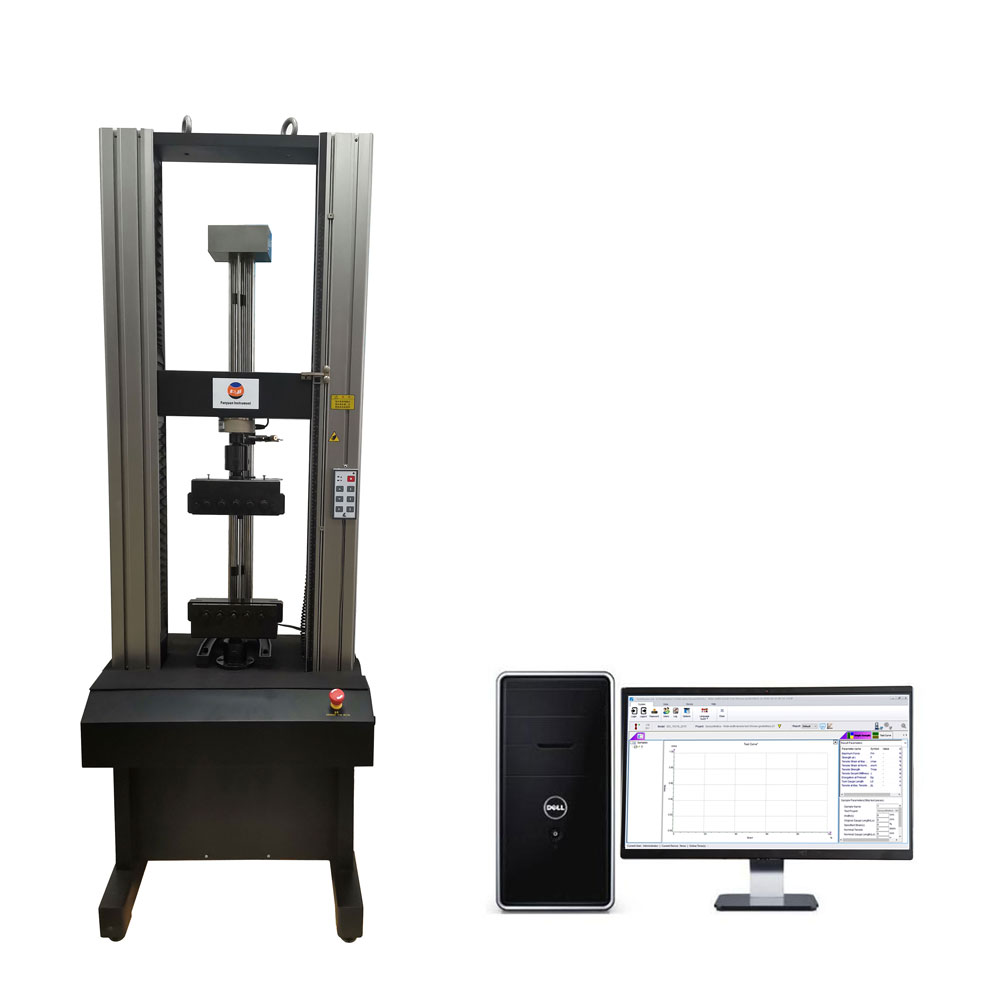

DW1210 Geosynthetics Strength Tester is used to carry out the tensile strength test,tearing strength test, puncture resistance test, the tensile test for joints/seams and peel strength test, etc., on geosynthetics or geosynthetic-related products.
DW1210 Geosynthetics Strength Tester is used to carry out the tensile strength test,tearing strength test, puncture resistance test, the tensile test for joints/seams and peel strength test, etc., on geosynthetics or geosynthetic-related products.
STANDARDS | Tensile | ISO 10319, ISO 10321, ASTM D4595 |
Tearing | ISO 9073.4, ASTM D4533 |
Puncture | ISO 12236, ASTM D4833, ASTM D6241 |
Seam strength | ASTM D4884 |
Burst | ASTM D3787 |
Note: this universal strength tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
| Max. testing force | 10KN, 20KN, 50KN, 100KN, 150KN, 200KN，(Please specify before place order) |
| Measuring range of force | 2% ~100% of the full range |
| Measuring accuracy of force | Prior to ±1% of the displayed value |
| Speed range | 0.5~500mm/min,adjustable |
| Speed accuracy | ±1% |
| Max. testing force | 10KN, 20KN, 50KN, 100KN, 150KN, 200KN，(Please specify before place order) |
| Measuring range of force | 2% ~100% of the full range |
| Measuring accuracy of force | Prior to ±1% of the displayed value |
| Speed range | 0.5~500mm/min,adjustable |
| Speed accuracy | ±1% |

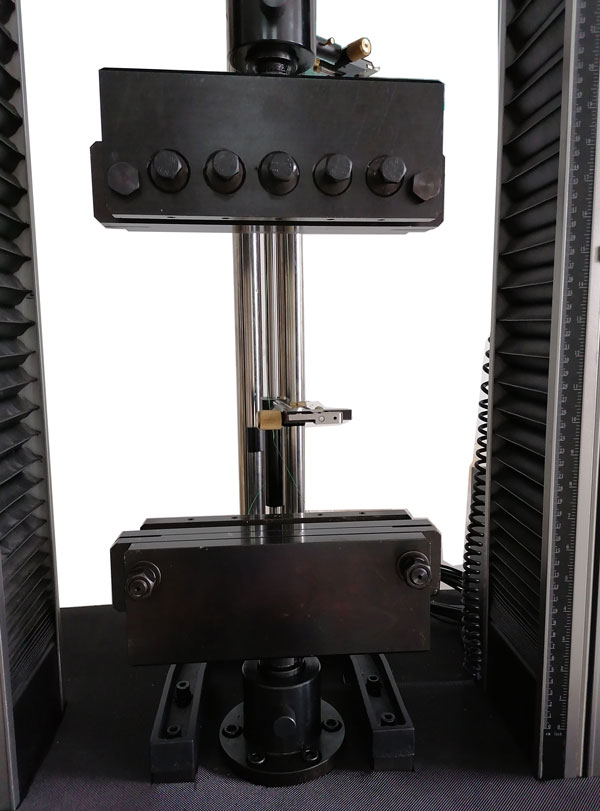

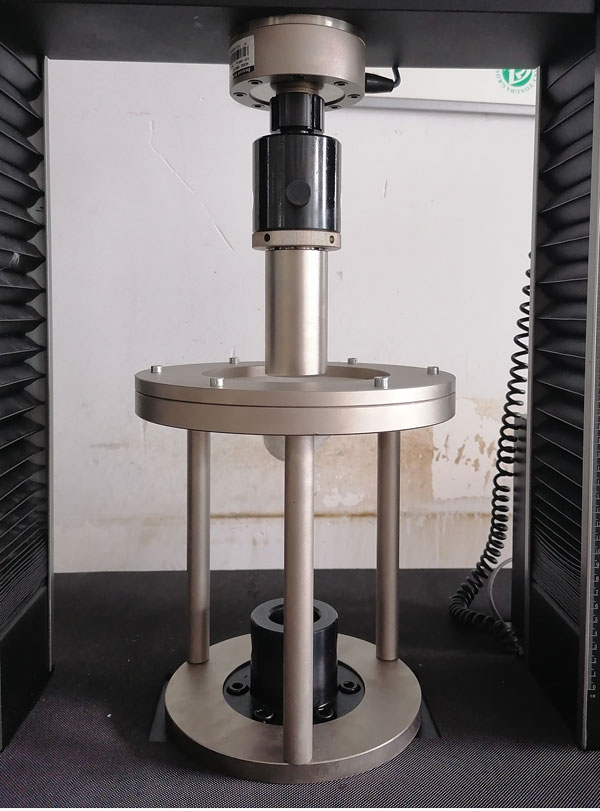

Wide-width strip clamp Narrow-width strip clamp Puncture clamp
